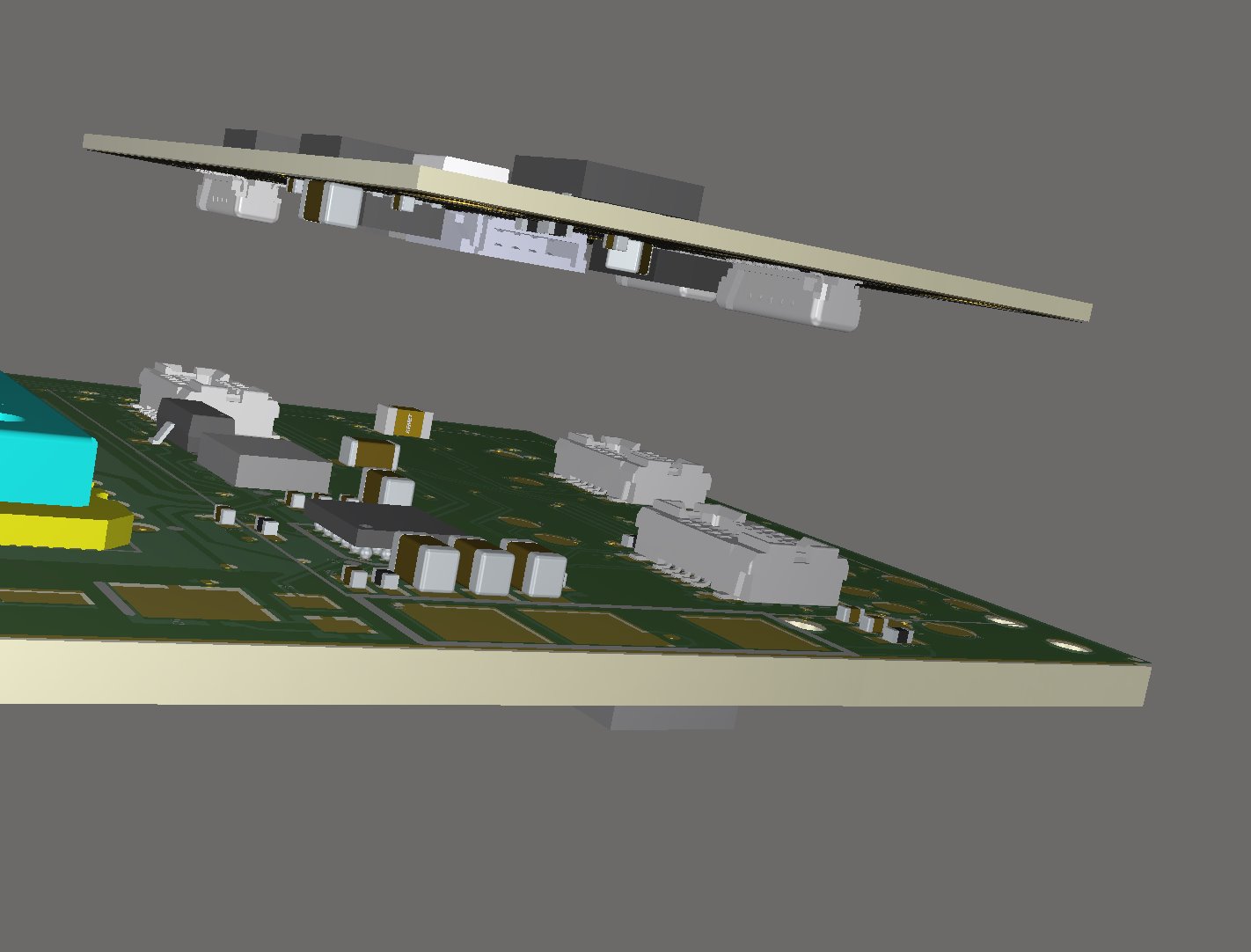

There are 2 PCB. First one is named as "Motherboard" and second one is "Sensorboard". Smartwatch design capable of measure PPG,ECG,SPO2,body temperature and connecting internet via NB-IOT band.
Motherboard and Sensorboard

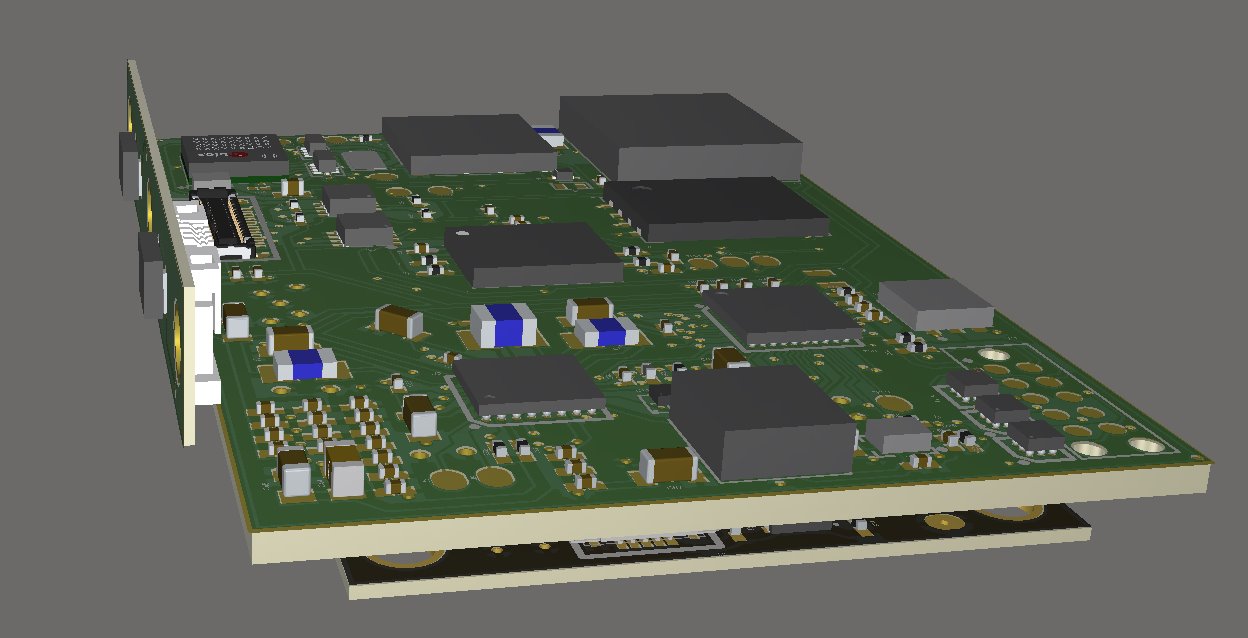

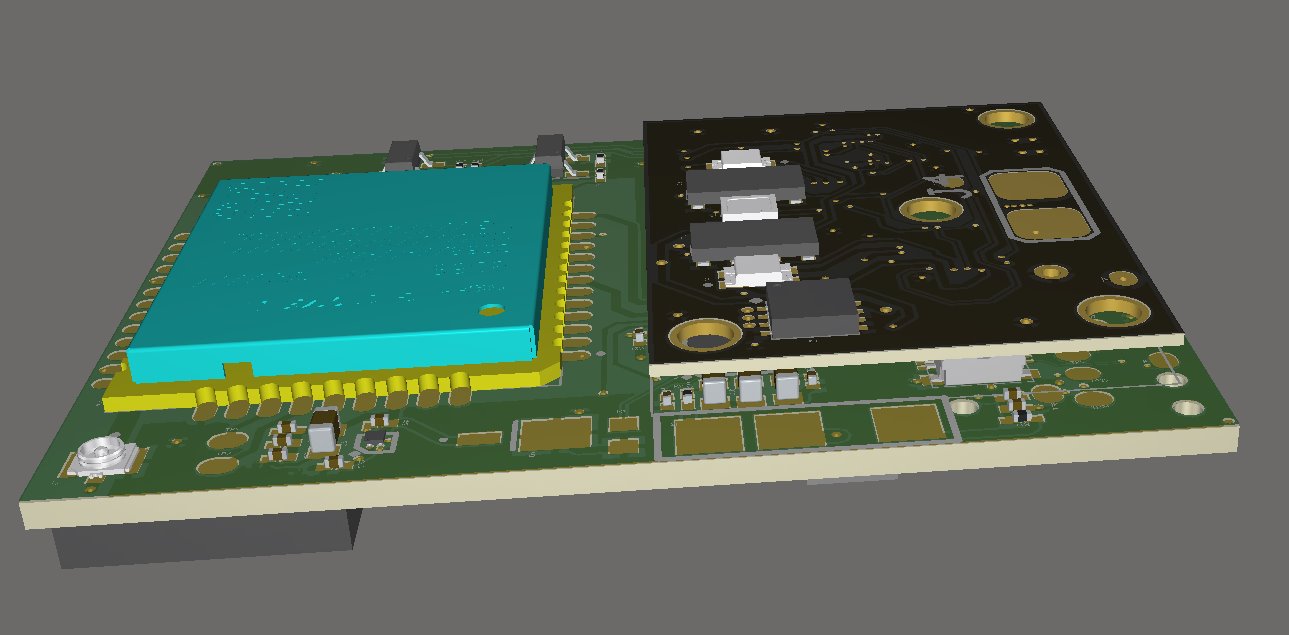

In this screenshot both two PCBs of the smartwatch were mated.
Smartwarch PCBs
It has an esim inside and able to connect bluetooth devices. Also it has a built-in gps. You see 3 separate PCBs that combine to form the smartwatch.

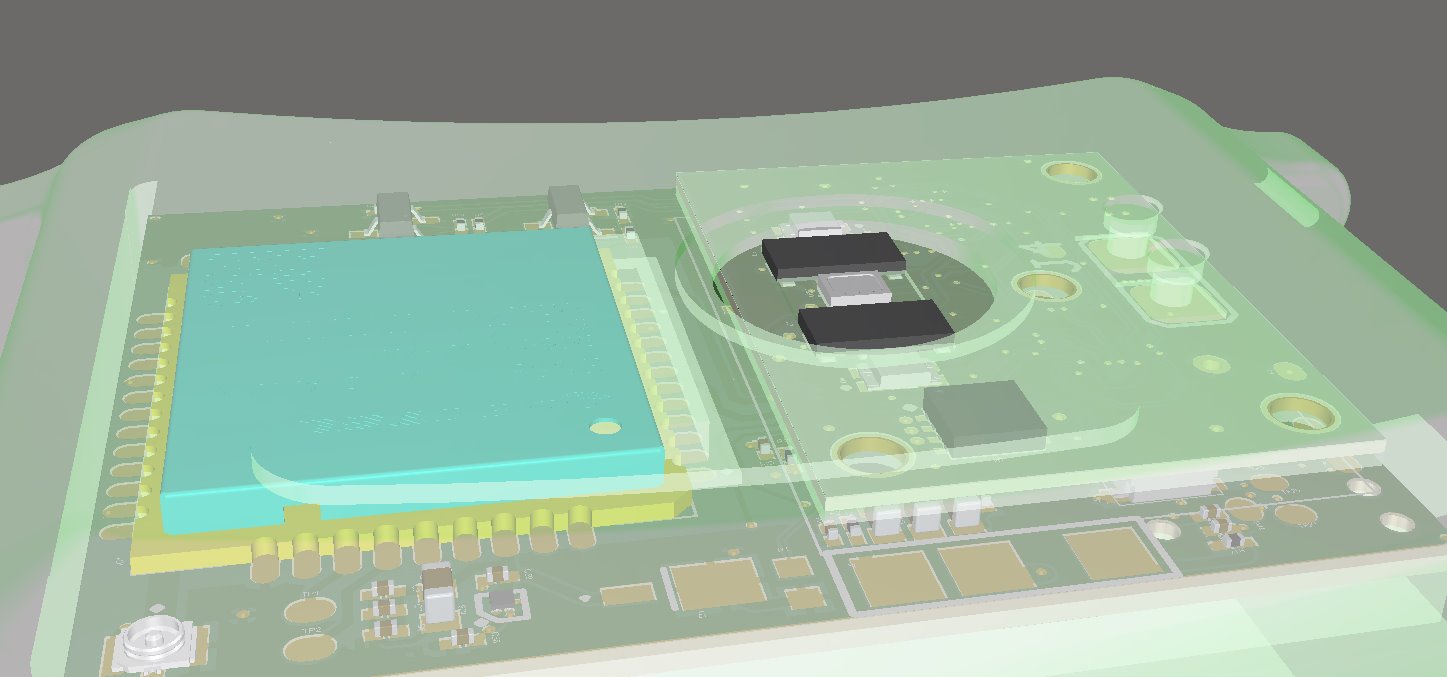

Smartwatch PCBs in predesigned case.
case not designed by me.

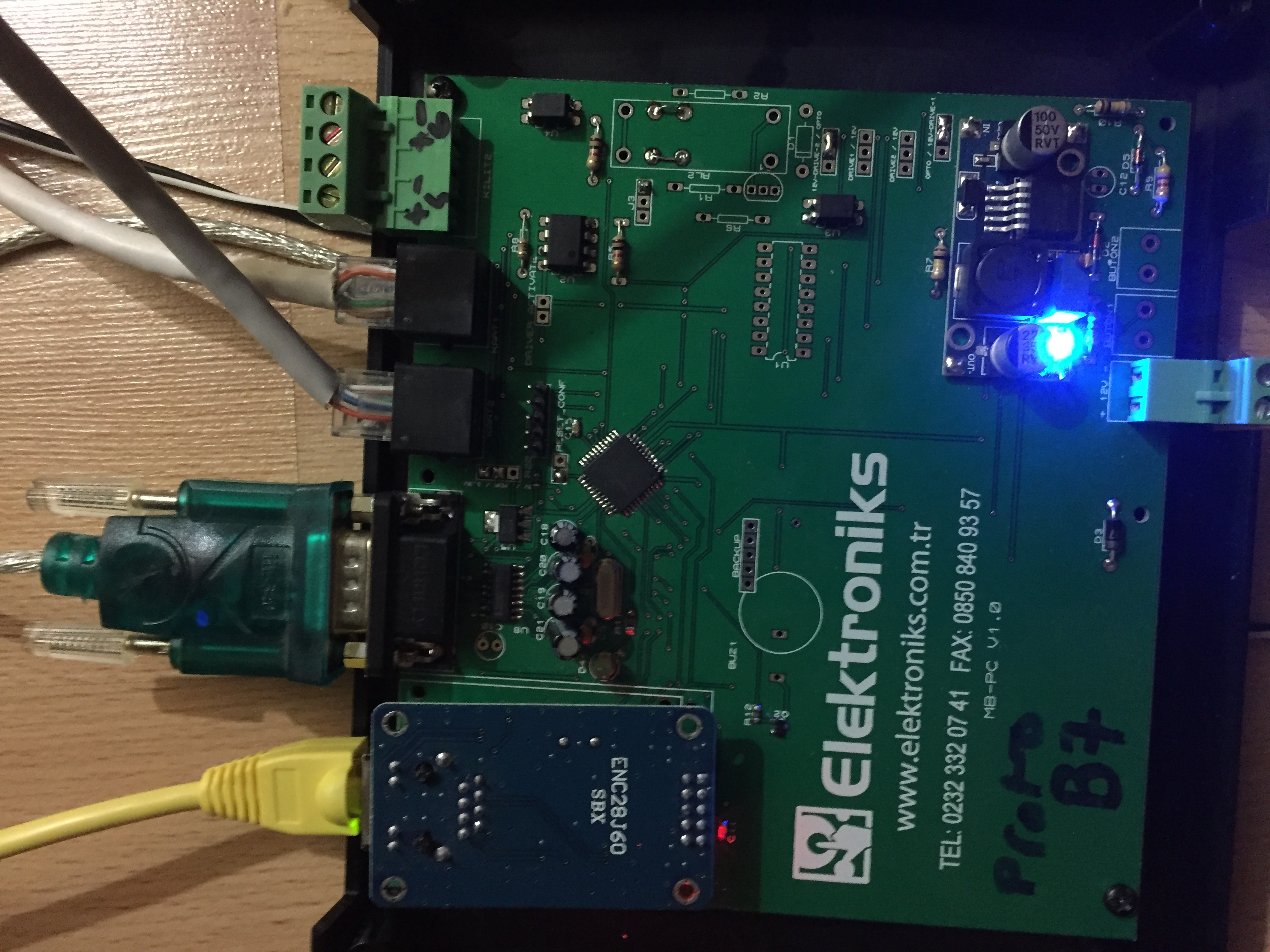

RFID Reader Main Card
with DHCP Support

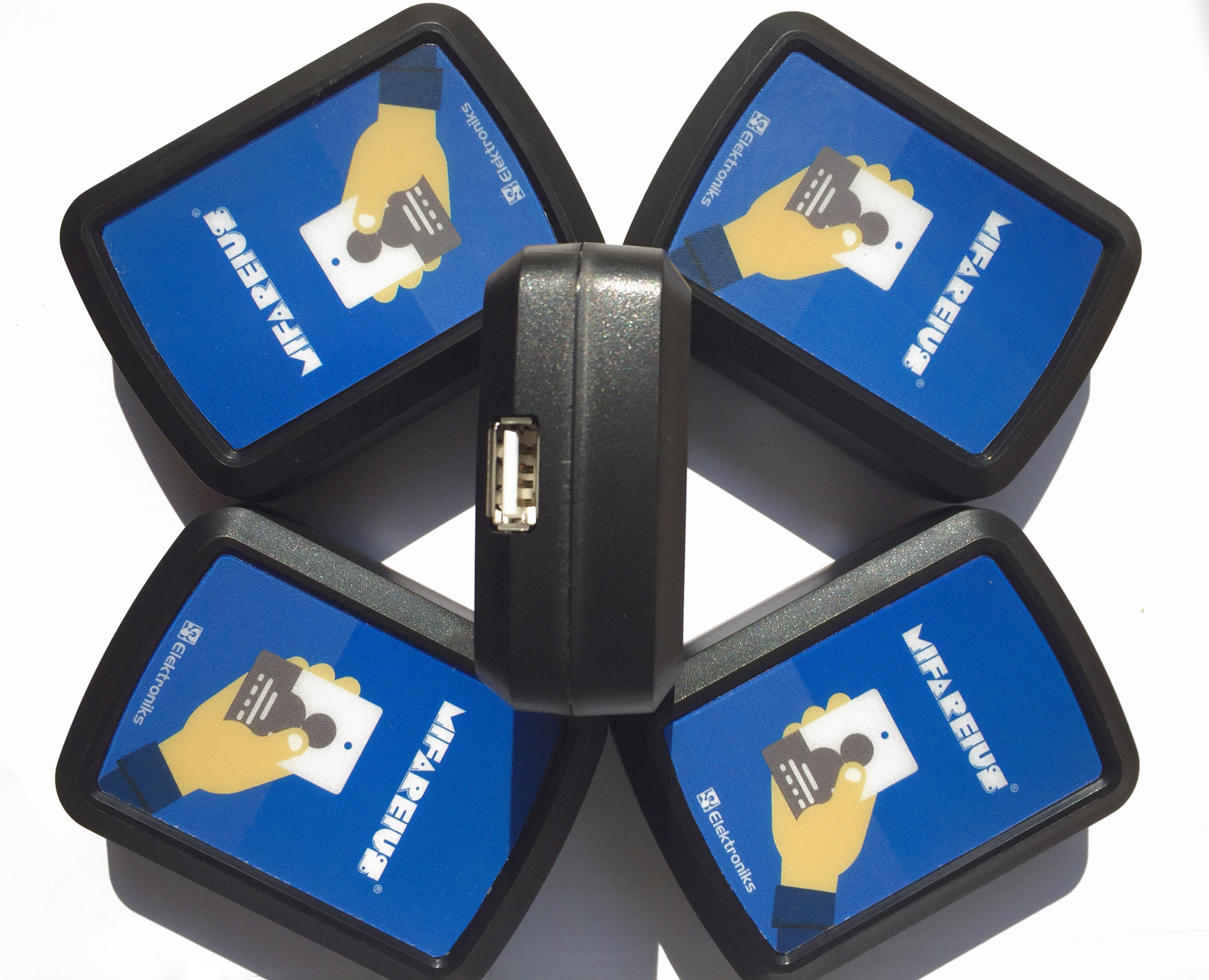

Mifare USB Tag Reader
works as USB keyboard & also supports RS485

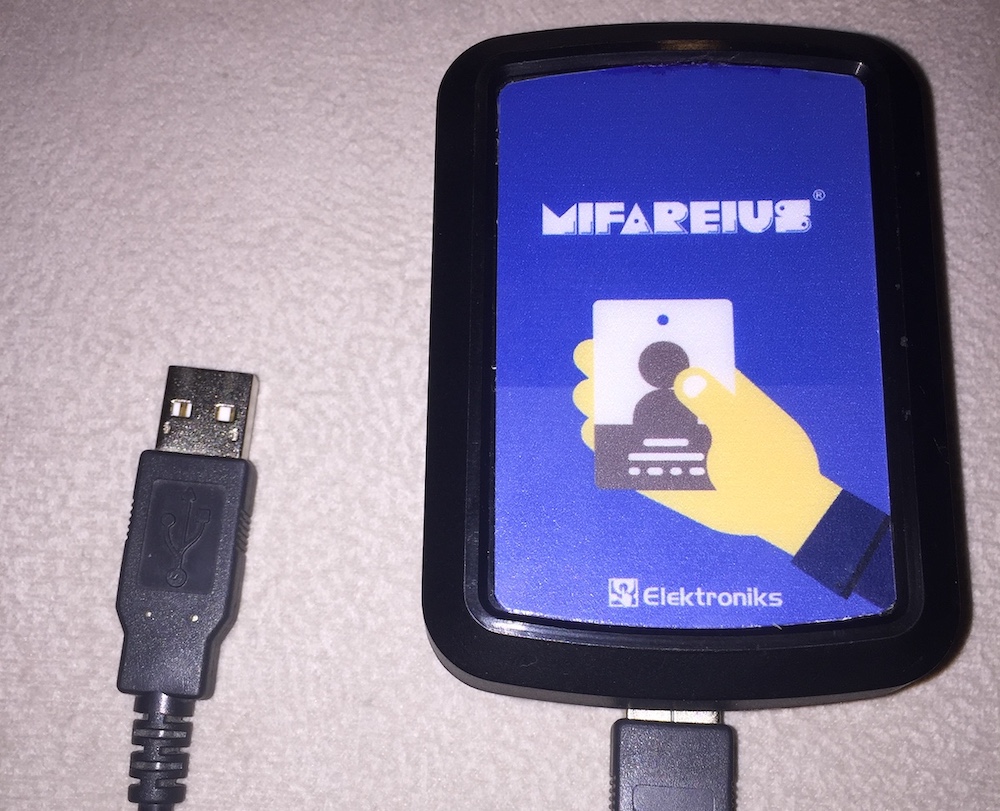

Mifare USB Tag Reader
works as USB keyboard & also supports RS485

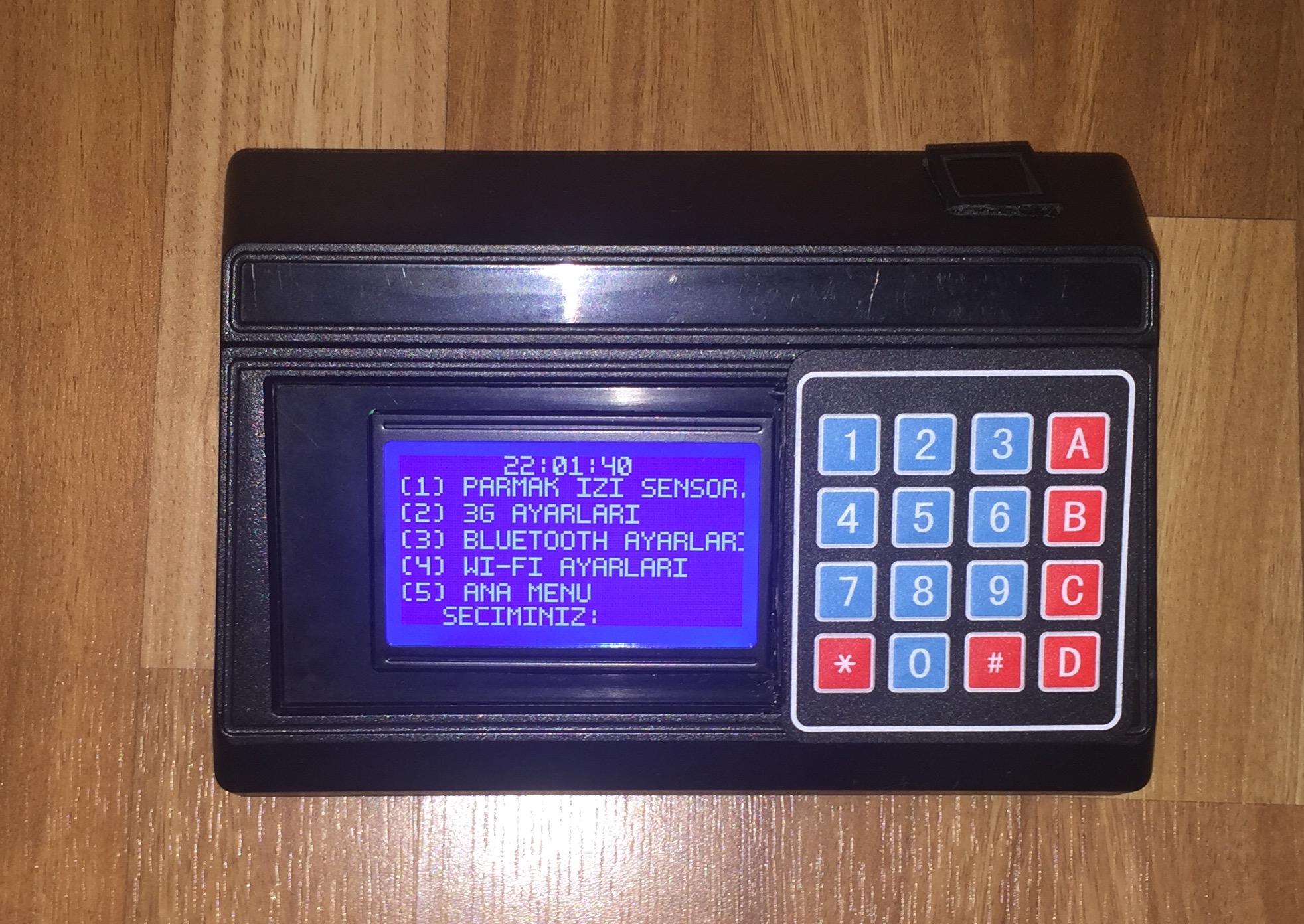

Mobile Biometric Identification System
also known as MOBIVA

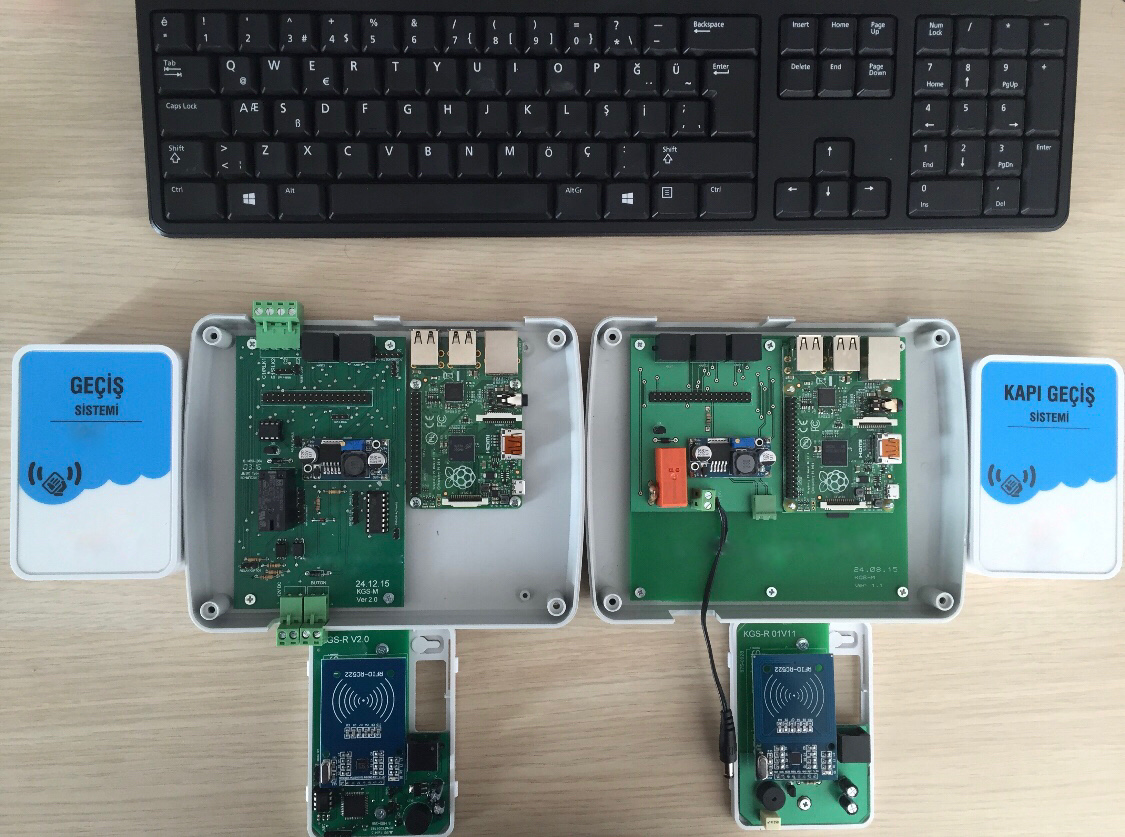

Mifare Access Control System
based on Raspberry Pi & Microchip PIC programmed in Python & C

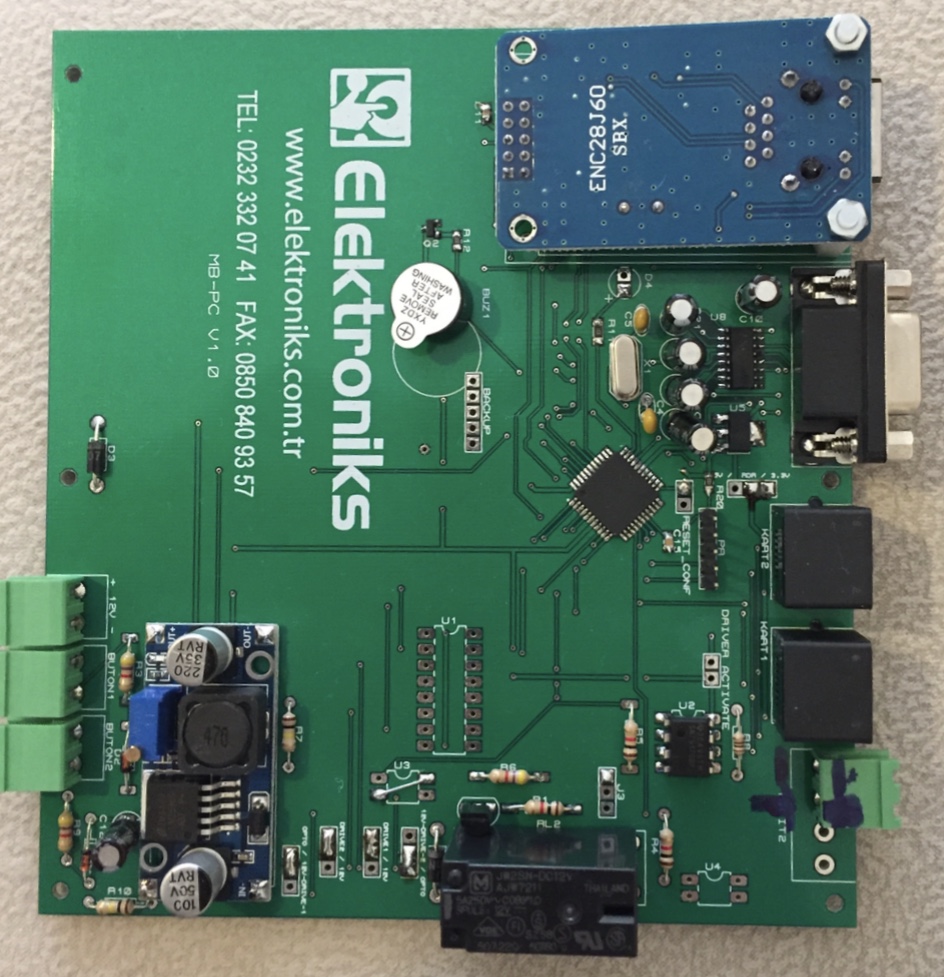

Mifare Access Control System Main Card
based on Microchip PIC & programmed in C
Mifare RFID Access Control System Reader & Main Card
